Korea Weighing System Co.,Ltd

home > Products > Truck Scale > 900MHZ Unattended weighing system - Aboveground

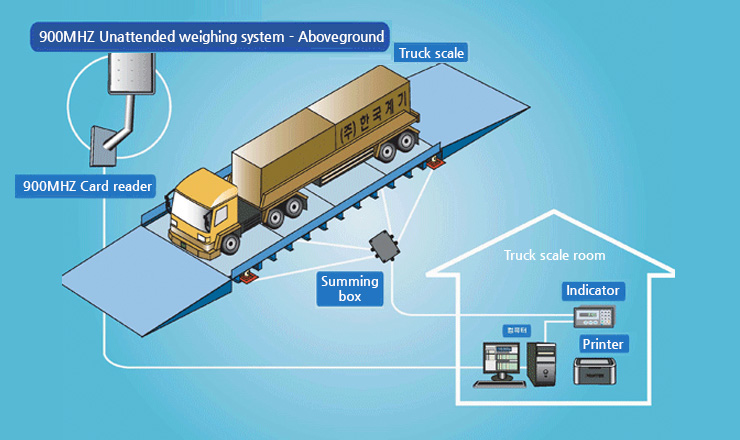

900MHZ Unattended weighing system - Aboveground

900MHZ Unattended weighing system - Aboveground

Features

  • 1. Certain range of 900MHz signal is released, and when the vehicle with the card approaches, the weighing is
    complete after the steady signal.
  • 2. Various functions such as signal intensity, and setting time can be managed through the weighing software.
  • 3. Facility is simple, and installation is possible without external limitations.
  • 4. Weighing without delay is secured through the weighing message outputted in the electric sign.

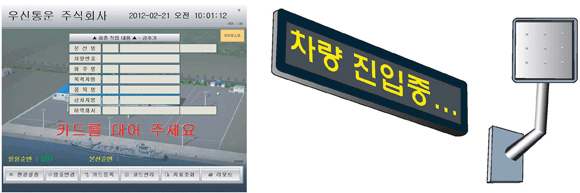

Composition

Composition

Installation cases

  • Korea Express-Incheon Port

    Korea Express-Incheon Port

  • Korea Express-Incheon Port

    Korea Express-Incheon Port

  • Samsung Industry-Donghae

    Samsung Industry-Donghae

  • Daesun Flour Mills-Chungnam

    Korea Daesun Flour Mills-Chungnam

  • Dongnam-Pyeongtaek

    Dongnam-Pyeongtaek

  • Lotte E&C - Young-jong-do

    Lotte E&C - Young-jong-do

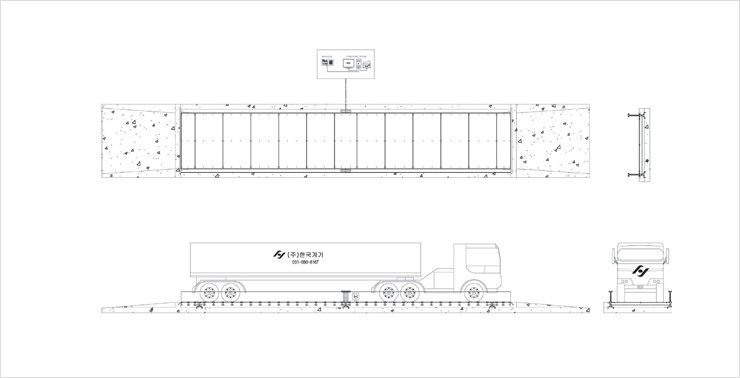

Specifications

Specifications
Maximum indication (ton) Grid value (kg) Platform (mm) Applied vehicle
30 5 2,400 * 6,700 5 ton major axis
50 10 3,000 * 9,000 11 tons~25 tons
50 10 3,000 * 10,000 25 tons
50 / 60 10 3,000 * 15,000 Trailer
50 / 60 10 3,000 * 16,000 Trailer, bulk
50 / 60 / 80 10 3,000 * 18,000 Pull car
80 / 100 10 / 20 3,000 * 20,000 Special major axis, etc.
200 50 3,000 * 22,000 Truck, heavy vehicle, etc.
300 100 3,000 * 24,000 Special, truck, heavy vehicle, etc.
