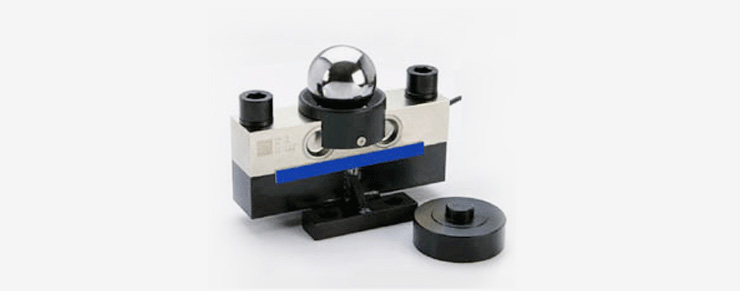

TS

TS

Specail Features

  • Capacity range from 10,000 to 35,000kg
  • Nickel plated alloy steel construction
  • PVC Wire jacket
  • Protection class IP68

Options

  • Digital Load Cell
  • Hi-temperature Load Cell

Specifications

GRADE UNITS E C2/15 C3 C4
Rated Capacites kgf 10tf, 25tf, 30tf
Rated output
Zero balance 		㎷/v
㎷/v 		2.0±0.004
0±0.02
Total error
Creep for 30minute
Temperature effect on
　　　　　　Zero value shift
　　　　　　Output value shift 		%
%

%/10℃
%/10℃ 		0.050
0.0500

0.0007
0.0040 		0.030
0.0250

0.0010
0.0012 		0.020
0.0170

0.0014
0.0010 		0.015
0.0120

0.0010
0.0007
Excitation
　　　　　　Recommended
　　　　　　Maximum
Resistance
　　　　　　Input
　　　　　　Output
　　　　　　Insulation
V
V

Ω
Ω
㏁
10
15

800±40
700±7
>5,000
Compensated temperature range
Operating temperature range 		℃
℃ 		-10 to +40
-20 to +80

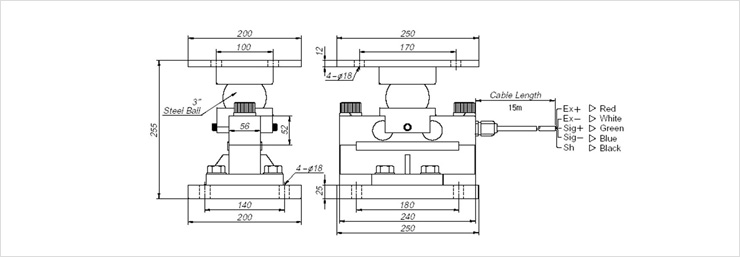

Dimensions

Dimensions
