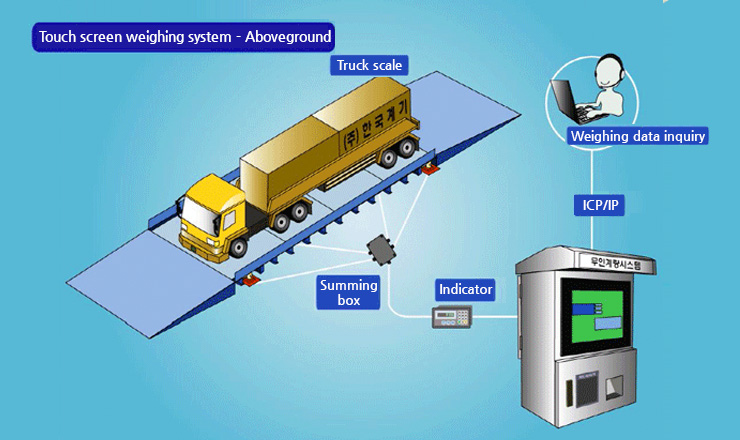

Touch screen weighing system - Aboveground

Touch screen weighing system - Aboveground

Features

  • 1. Automatic panel including the manual function in the auto weighing system.
  • 2. Touch computer is built in and separate computer is not required.
  • 3. In the case of having many items related to weighing, weighing can be done by moving with the touch button.
  • 4. Various report forms are supported and customized system is constructed.

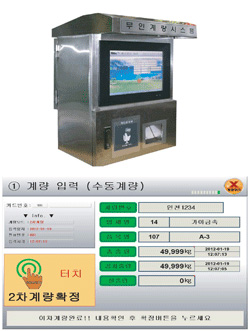

Composition

Composition
  • Touch screen computer is mounted to realized manual specialized
    system
  • Weighing message is outputted to enable anyone to use easily
  • Weighing data inquiry, output, and edit can be possible on network
    environment
  • Automatic weighing is possible by using the RFID card
  • Thermal printer mounted.
  • Various settings such as panel fan, heater, lamp, announcement, and
    number of metric table are possible.
  • Quick fault recovery is supported through remote service
※Option

- Panel protection post - For preventing vehicle impact
- Server client support system

Installation cases

  • Hwachang-Haman

    Hwachang-Haman

  • Hwachang-Haman

    Hwachang-Haman

  • Kyungshin Cable-Cheonan

    Kyungshin Cable-Cheonan

  • Korea Rural Community Corporation- Asan

    Korea Rural Community Corporation
    - Asan

  • Korea Nitto Optical - Pyeongtaek

    Korea Nitto Optical - Pyeongtaek

  • Youl Chon - Pyeongtaek

    Youl Chon - Pyeongtaek

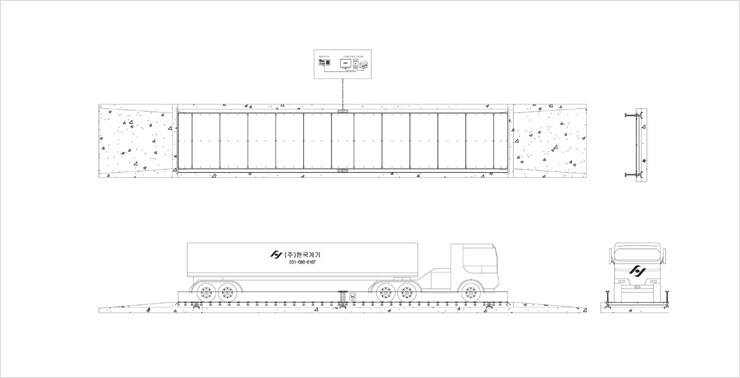

Specifications

Specifications
Maximum indication (ton) Grid value (kg) Platform (mm) Applied vehicle
30 5 2,400 * 6,700 5 ton major axis
50 10 3,000 * 9,000 11 tons~25 tons
50 10 3,000 * 10,000 25 tons
50 / 60 10 3,000 * 15,000 Trailer
50 / 60 10 3,000 * 16,000 Trailer, bulk
50 / 60 / 80 10 3,000 * 18,000 Pull car
80 / 100 10 / 20 3,000 * 20,000 Special major axis, etc.
200 50 3,000 * 22,000 Truck, heavy vehicle, etc.
300 100 3,000 * 24,000 Special, truck, heavy vehicle, etc.
