Specail Features

• Capacity range from 5,000 to 15,000kg
• Economy price
• Nickel plated alloy steel construction
• PVC Wire jacket
• Protection class IP67

Options

• Digital Load Cell
• Hi-temperature Load Cell

Specifications

GRADE	UNITS	E	C2/15	C3	C4
Rated Capacites	kgf	5tf, 10tf, 15tf
Rated output Zero balance	㎷/v ㎷/v	2.0±0.004 0±0.02
Total error Creep for 30minute Temperature effect on 　　　　　　Zero value shift 　　　　　　Output value shift	% % %/10℃ %/10℃	0.050 0.0500 0.0014 0.0040	0.030 0.0250 0.0010 0.0012	0.020 0.0170 0.0010 0.0010	0.015 0.0120 0.0007 0.0007
Excitation 　　　　　　Recommended 　　　　　　Maximum Resistance 　　　　　　Input 　　　　　　Output 　　　　　　Insulation	V V Ω Ω ㏁	10 15 800±40 700±7 >5,000
Compensated temperature range Operating temperature range	℃ ℃	-10 to +40 -20 to +80

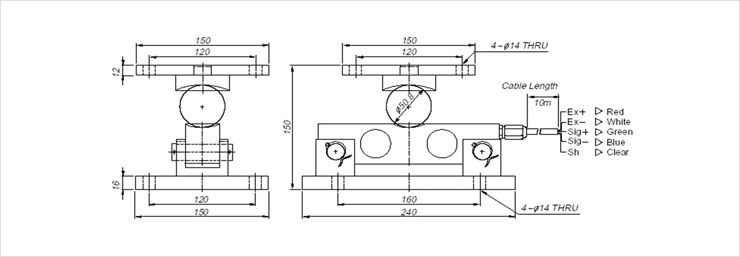

Dimensions
