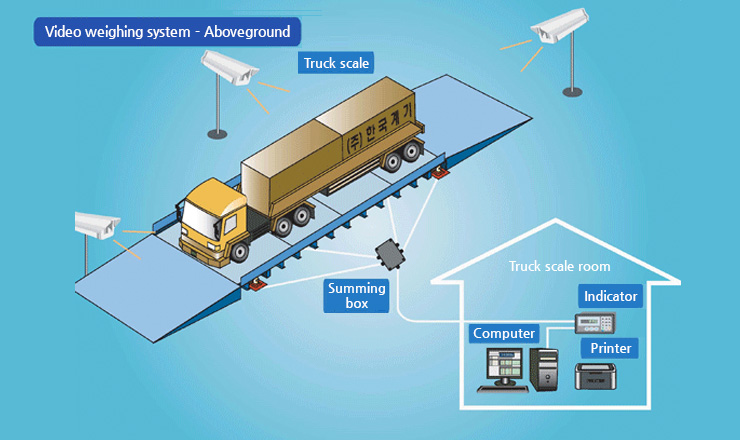

Video weighing system - Aboveground

Video weighing system - Aboveground

Features

  • 1. Various visual information such as the vehicle number and cargo box can be stored according to the location of the camera.
  • 2. The visual information can be printed together on the metric table to secure reliability on the DATA.
  • 3. Maximum 4CH of video is supported.
  • 4. Various reports and metric tables according to user's needs can be printed.

Composition

Composition
  • Simple design and various shortcut keys are configured to be produced for user's convenience.
  • The result value can be printed based on various search options such as date, client, item name, vehicle number, and input / output.
  • Conversion to Excel function is added to enable efficient management on the data.
  • Convenience on input is enhanced through company code and item code functions, and on inputting the vehicle number, the recent client and item are automatically produced to minimize the input.
※Option

- Can be converted to Excel
- Server client support system

Installation cases

  • Korea Rural Community Corporation- Dangjin

    Korea Rural Community Corporation
    - Dangjin

  • Daechang - Ganghwado

    Daechang - Ganghwado

  • Korea Rural Community Corporation- Asan

    Korea Rural Community Corporation
    - Asan

  • Korea Rural Community Corporation- Dangjin

    Korea Rural Community Corporation
    - Dangjin

  • Korea Nitto Optical - Peongtaek

    Korea Nitto Optical - Peongtaek

  • Jeju

    Jeju

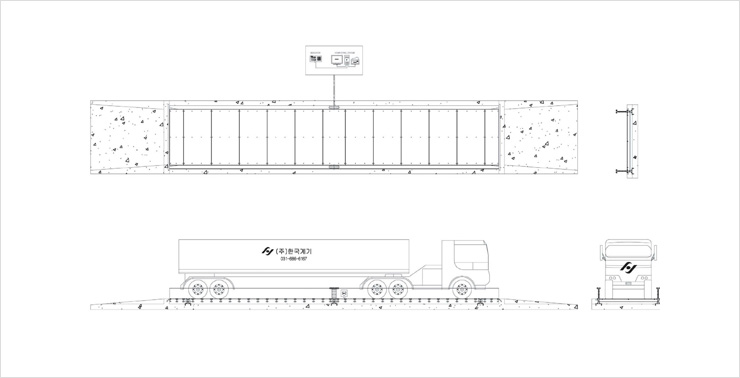

Specifications

Specifications
Maximum indication (ton) Grid value (kg) Platform (mm) Applied vehicle
30 5 2,400 * 6,700 5 ton major axis
50 10 3,000 * 9,000 11 tons~25 tons
50 10 3,000 * 10,000 25 tons
50 / 60 10 3,000 * 15,000 Trailer
50 / 60 10 3,000 * 16,000 Trailer, bulk
50 / 60 / 80 10 3,000 * 18,000 Pull car
80 / 100 10 / 20 3,000 * 20,000 Special major axis, etc.
200 50 3,000 * 22,000 Truck, heavy vehicle, etc.
300 100 3,000 * 24,000 Special, truck, heavy vehicle, etc.
