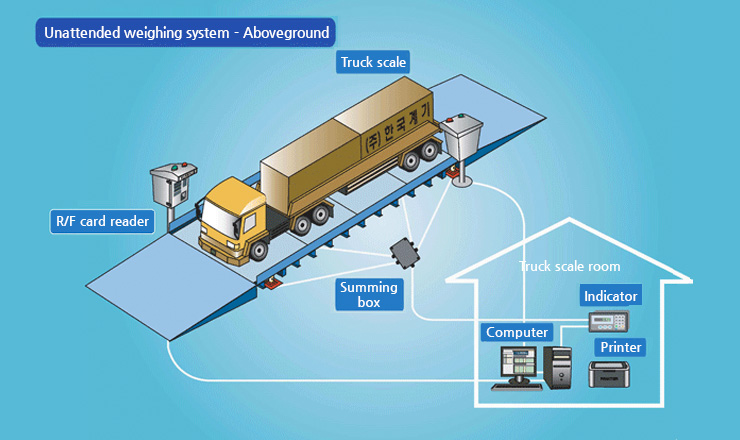

Unattended weighing system - Aboveground

Unattended weighing system - Aboveground

Features

  • 1. The weighing is automated to secure efficiency and reliability.
  • 2. Quick weighing is possible in fields with high demand for weighing to minimize the inconvenience.
  • 3. Weighing data can be easily inquired in network connection environment.
  • 4. Various report forms are supported and customized system is constructed.

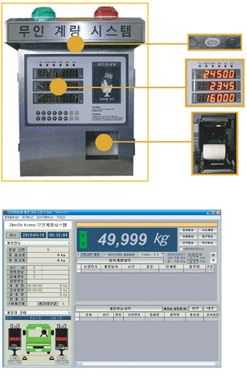

Composition

Composition
  • LED lamp
    Can be used in nightime, and timer can be set in the software.
    LED type to have semi-permanent lifespan
  • Information such as current weight, vehicle number, actual weight,
    and communication status are indicated.
  • Thermal printer adopted.
    Convenient and easy paper exchange
  • Automatic operation of the fan and heater according to the ambient
    temperature
  • Panel and weight status are indicated in image to be identified easily.
  • Various settings such as panel fan, heater, lamp, announcement, and
    number of metric table are possible.
  • Quick fault recovery is supported through remote service
※Option

- Panel protection post - For preventing vehicle impact
- Electric sign for weighing information - High-intensity full-color electric sign
- Server client support system

Installation cases

  • Daesun Flour Mills - Asan

    Daesun Flour Mills - Asan

  • Korea Rural Community Corporation- Dangjin

    Korea Rural Community Corporation
    - Dangjin

  • Hyundai Development Company - Pusan port

    Hyundai Development Company - Pusan port

  • Seonam Environment - Seoul

    Seonam Environment - Seoul

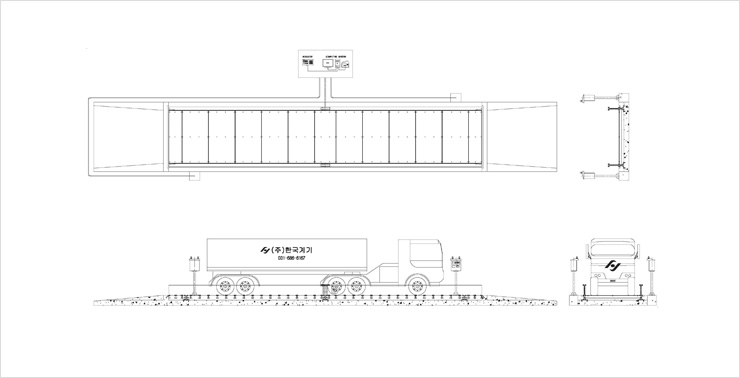

Specifications

Specifications
Maximum indication (ton) Grid value (kg) Platform (mm) Applied vehicle
30 5 2,400 * 6,700 5 ton major axis
50 10 3,000 * 9,000 11 tons~25 tons
50 10 3,000 * 10,000 25 tons
50 / 60 10 3,000 * 15,000 Trailer
50 / 60 10 3,000 * 16,000 Trailer, bulk
50 / 60 / 80 10 3,000 * 18,000 Pull car
80 / 100 10 / 20 3,000 * 20,000 Special major axis, etc.
200 50 3,000 * 22,000 Truck, heavy vehicle, etc.
300 100 3,000 * 24,000 Special, truck, heavy vehicle, etc.
