Specail Features

• Capacity range from 10,000 to 35,000kg
• High precision, high reliability, super stability

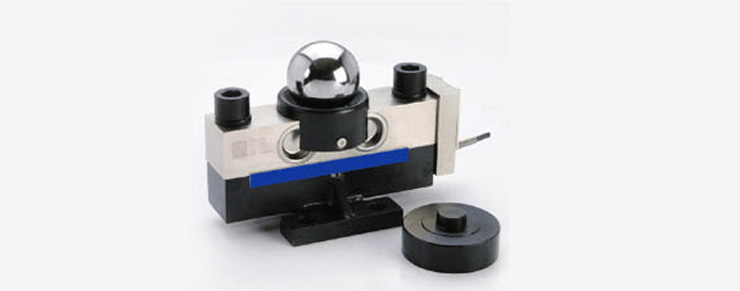

• The construction with steel ball and cap has many advantages in self-reposition place, certre-adjustment, anti-side force, anti-wallop
• Easy installation, quite good exchangeability
• Nickel plated alloy steel construction
• PVC Wire jacket
• Protection class IP68
• D2001C/ D2002C weighting indicator

Specifications

GRADE	UNITS
Rated Capacites	kgf	10tf, 25tf, 30tf
Sensitivity(Cn) Sensitivity tolerance A/D Internal resolution A/D External resolution	- % digit digit	2000d/t, 1000d/t, 1000d/t 0.01 60,000 20000 / 25000 / 30000
Total error Creep for 30minute Temperature zero value shift Temperature output value shift	% % %/10℃ %/10℃	0.02 0.02 0.01 0.02
Excitation 　　　　　　Recommended 　　　　　　Maximum Measuring rate Current consumption Resolution Asynchrone interface Baudrate Number of bus adresses Maximum transmitting distance Limit load Operating temperature range	V DC V DC /sec mA Bit BPS m % ℃	9-12 20 50 35 24 ( 18 bit at 60Hz ) RS-485 / 5-Wire 9600 max.32 1200 150 -30 to +70

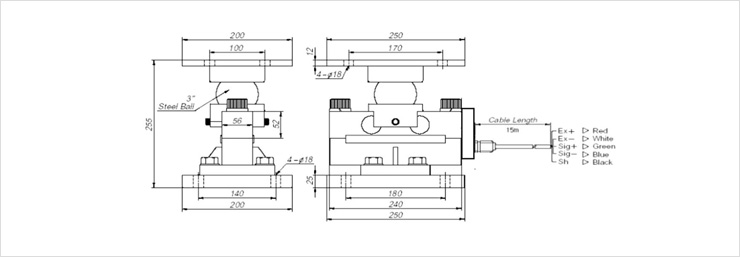

Dimensions
