PC weighing system - Underground

PC weighing system - Underground

Features

  • 1. 32-bit application for Windows
  • 2. Developed based on paradox/Dbase Database engine to secure DATA stability.
  • 3. Input is coded for simple and convenient use.
  • 4. Various reports and metric tables according to user's needs can be printed.

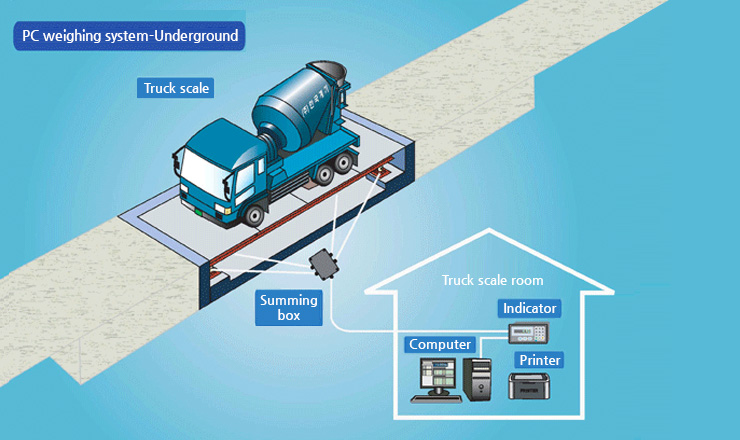

Composition

PC weighing system - Underground
  • Simple design and various shortcut keys are configured to be produced for user's convenience.
  • The result value can be printed based on various search options such as date, client, item name, vehicle number, and input / output.
  • Conversion to Excel function is added to enable efficient management on the data.
  • The client code and item code function enhanced the convenience in input, and recent client and item are automatically produced when inputting the vehicle number to minimize the input.
※Option

- Can be converted to Excel
- Server client support system

Installation cases

  • Hyundai Development Company -Pyeongtaek Port

    Hyundai Development Company
    -Pyeongtaek Port

  • SK-Suwon

    SK-Suwon

  • Sebang-Gwangyang Port

    Sebang-Gwangyang Port

  • Hyundai I-Service-Busan New Port

    Hyundai I-Service-Busan New Port

  • Umicore - Cheonan

    Umicore - Cheonan

  • 퓨리나 사료 - Pyeongtaek

    Purina feed - Pyeongtaek

Specifications

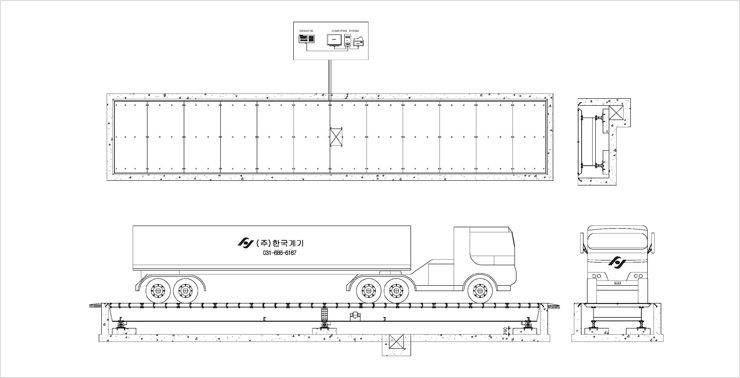

PC weighing system - Underground Specifications
Maximum indication (ton) Grid value (kg) Platform (mm) Applied vehicle
30 5 2,400 * 6,700 5 ton major axis
50 10 3,000 * 9,000 11 tons~25 tons
50 10 3,000 * 10,000 25 tons
50 / 60 10 3,000 * 15,000 Trailer
50 / 60 10 3,000 * 16,000 Trailer, bulk
50 / 60 / 80 10 3,000 * 18,000 Pull car
80 / 100 10 / 20 3,000 * 20,000 Special major axis, etc.
200 50 3,000 * 22,000 Truck, heavy vehicle, etc.
300 100 3,000 * 24,000 Special, truck, heavy vehicle, etc.
